Applications

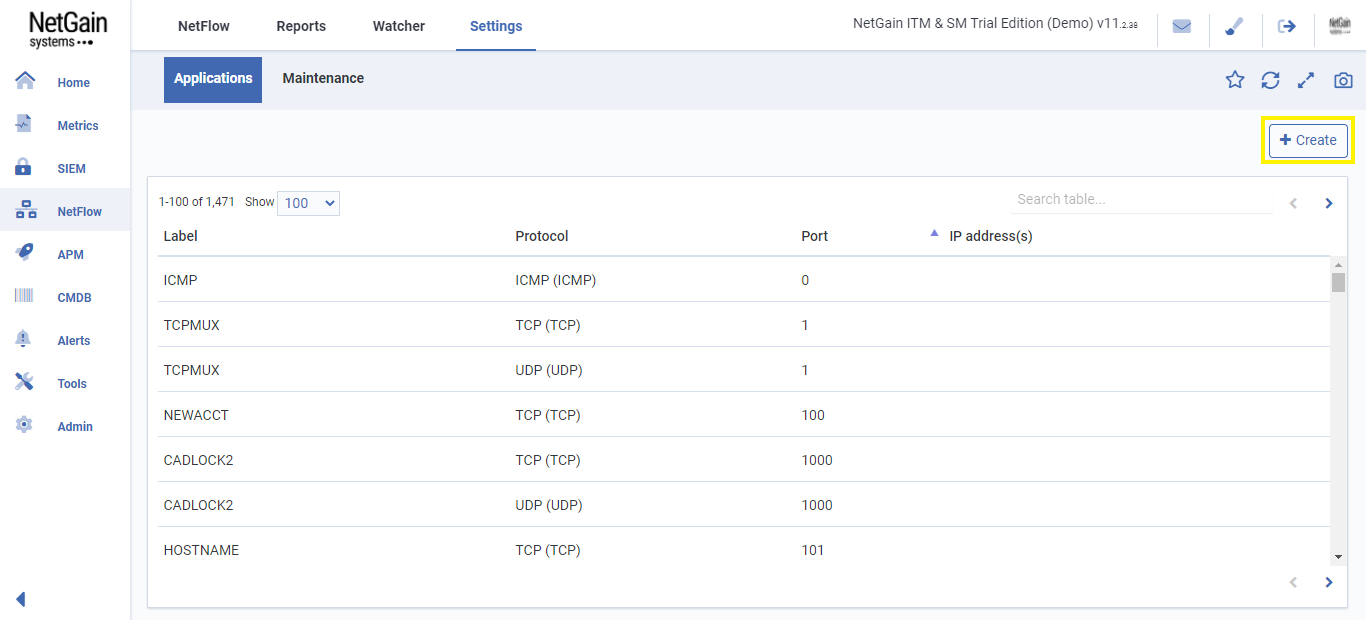

By default, NetGain Systems will generate all known applications. User can create new applications based on TCP/UDP protocol. Click <+Create>.

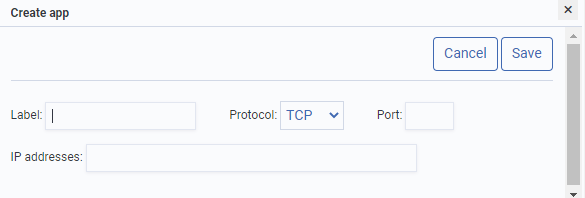

A pop-up to create an Application will show. Enter relevant details.

Label – Name of the Application

Protocol – ICMP / TCP / UDP

Port – Port number of the Application

IP addresses – Target IP address of the Application

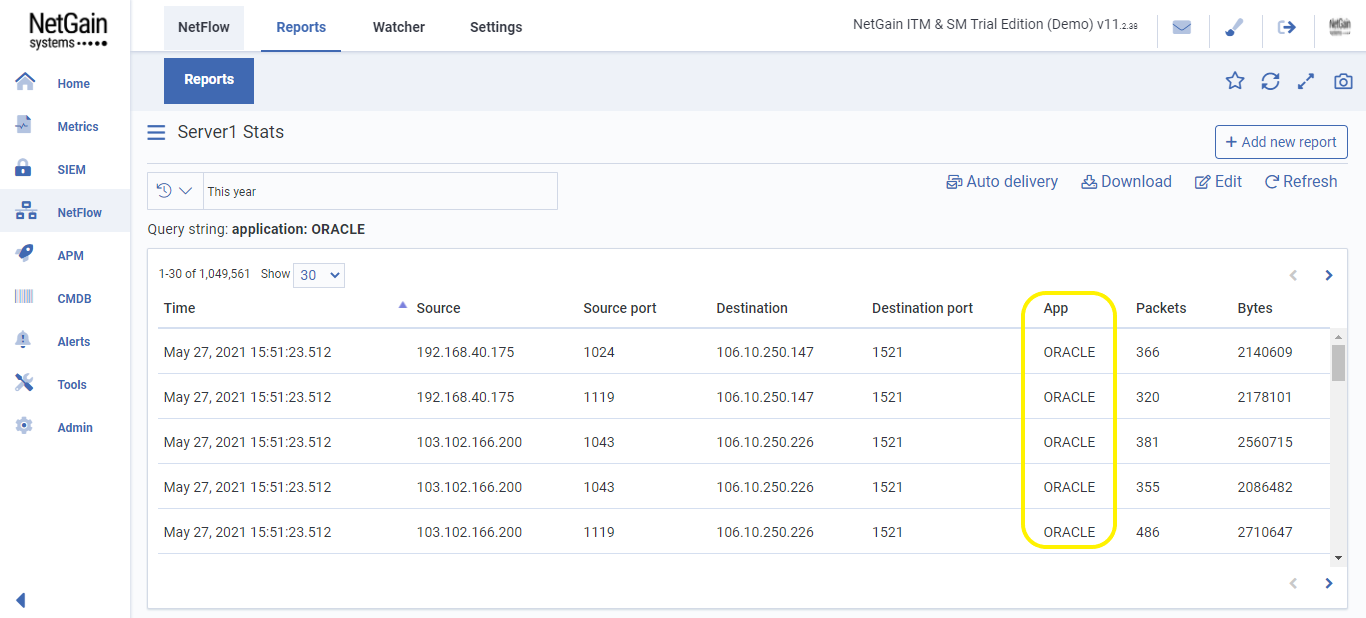

Once done, click <Save> and your Application will be ready under the search query of NetFlow.
