Logical Map

Logical Map allows the user to set various types of backgrounds so that there is a useful representation of the enterprise network and systems.

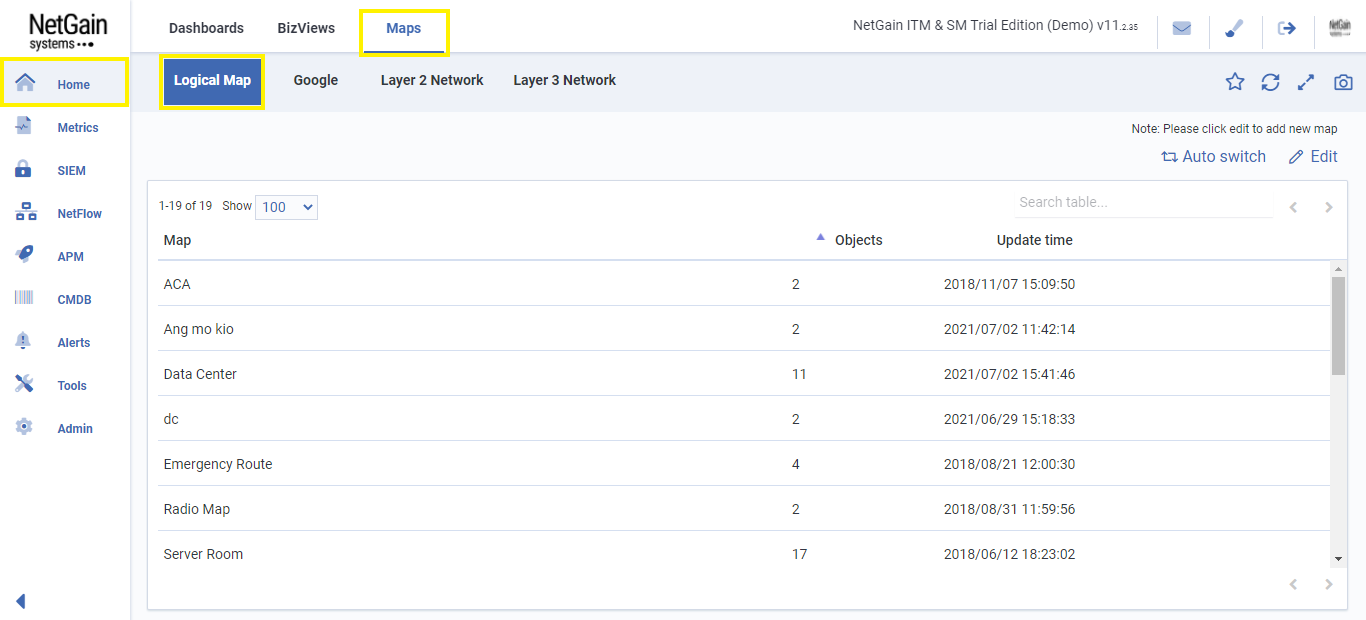

To view the current logical maps, click on <Home> in the Left Navigation Bar, then <Maps> in the top navigation bar. Click on <Logical Map>, and you can view the current information and status of devices in a specific location.

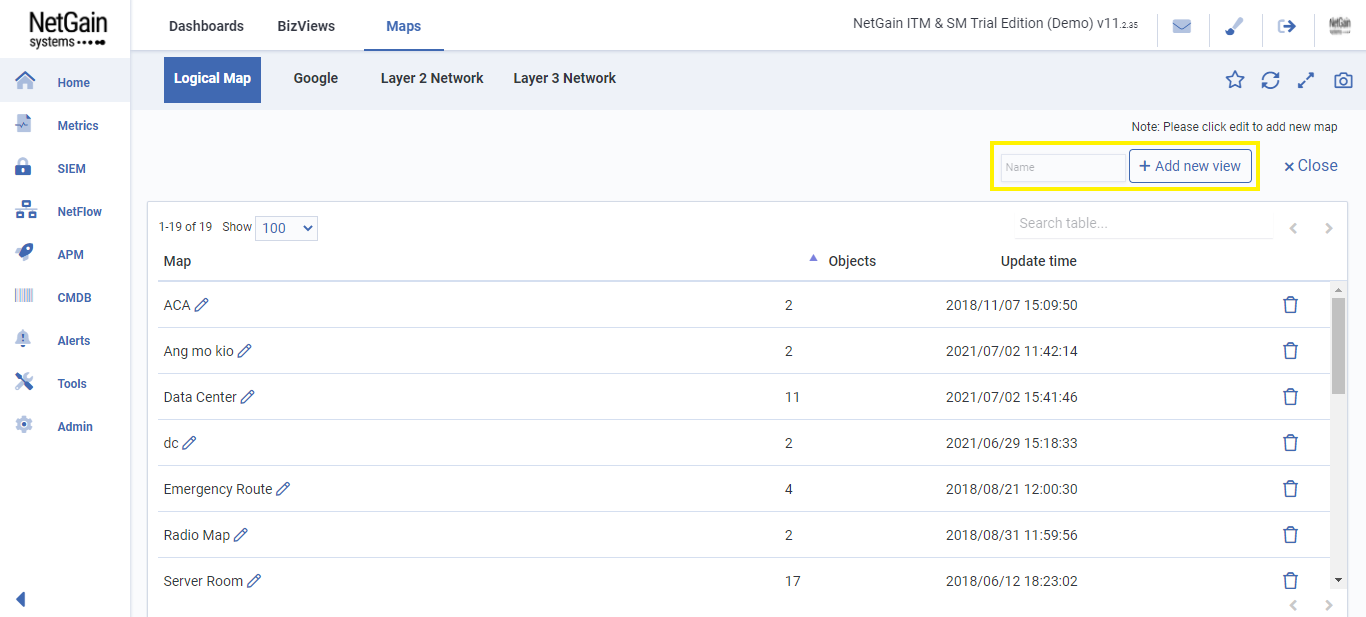

To create a new logical map, click enter the map name, and click <+Add new view>.

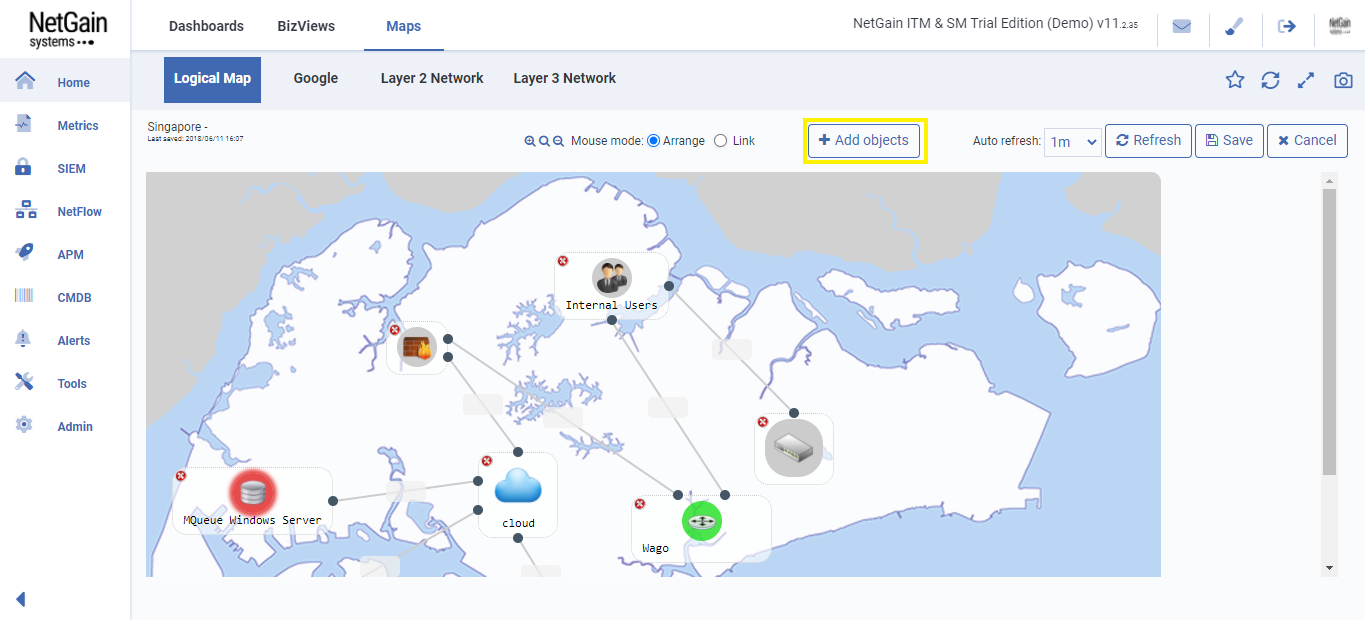

Click on the new view name that you have just created, click , click <+Add objects>, to bring up an edit menu.

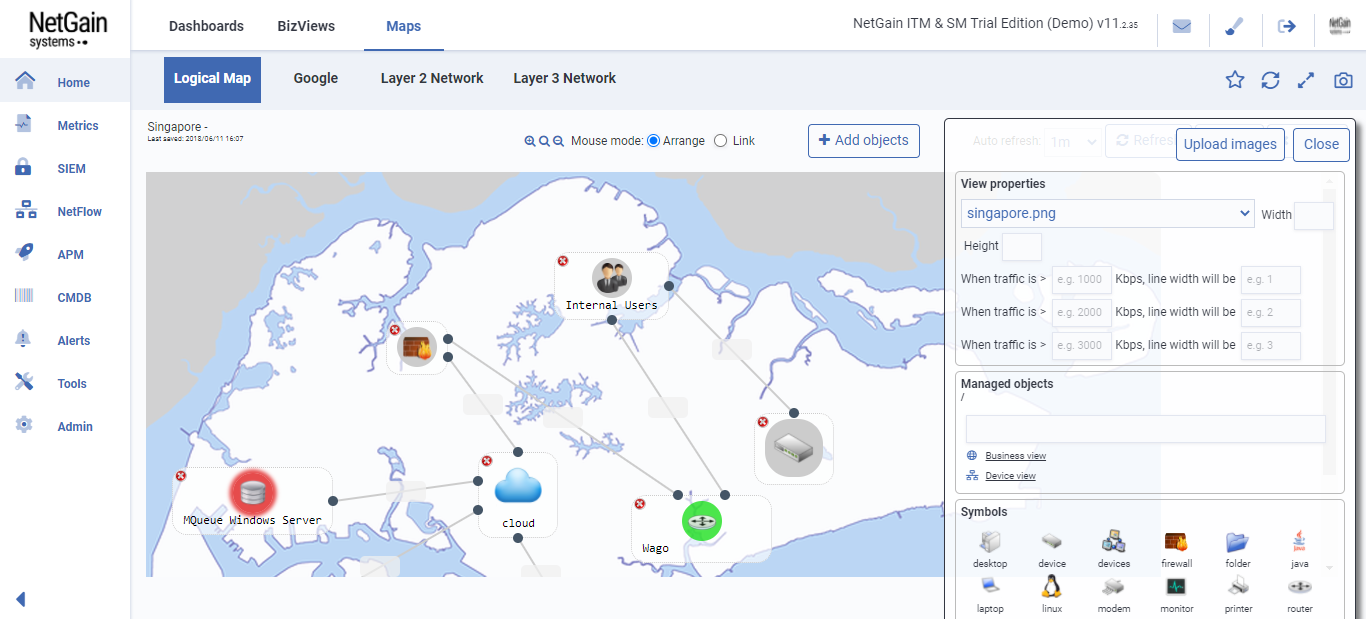

From the pop-up menu, you can set background pictures or upload your own pictures. Drag and drop the devices and symbols into the picture. When completed, close the pop-up menu and save.
